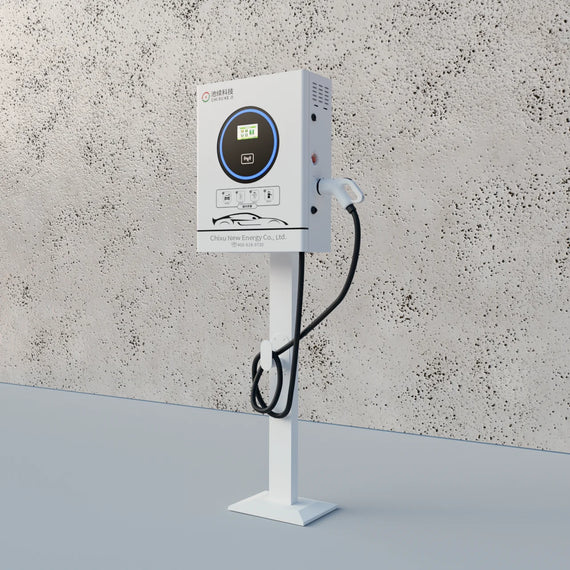

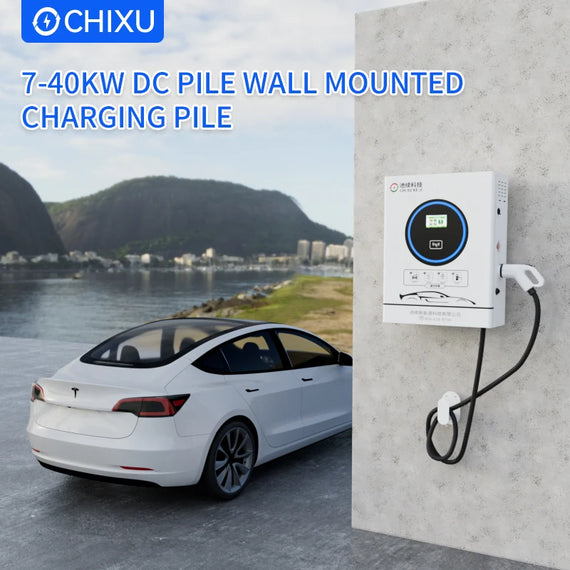

Dc Ev Charger Ccs2 Wall Mounted Charging Stations Solar Car Charging Station for Home

Weight:

SKU:

Barcode:

Collections: EV Charger

Product type: —

Vendor: CarZone

Tags: —

Availability:

$3,352.96

SPECIFICATIONS

Brand Name: NONE

Charging port: 1port

Condition: New

High-concerned chemical: none

Input Voltage: 380 V

Interface Standard: CCS

Origin: Mainland China

Output Current: DC

Output Power: 7kw 20kw 30kw 40kw

Place of Origin: China

Purpose: for replace/repair

Touchscreen: Yes

Warranty: 2 years

Wireless Support: Bluetooth

Dear friends, welcome to my store. If you need other models of this product, please contact me and I will send the product link for you to buy! Please forgive me if the reply is not timely due to time difference! Welcome to add my Whatsapp: +86 19376877470. Our store operates in good faith, please feel free to place an order！
Products Description

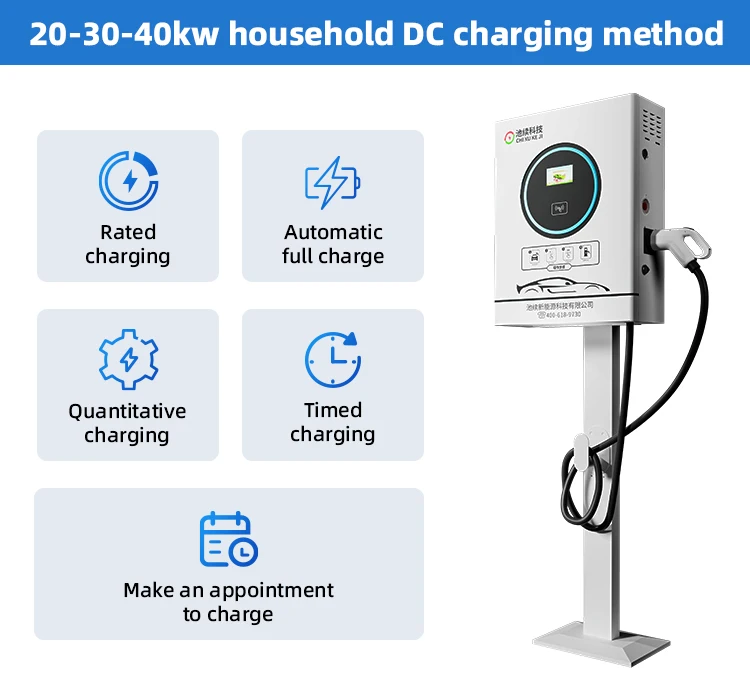

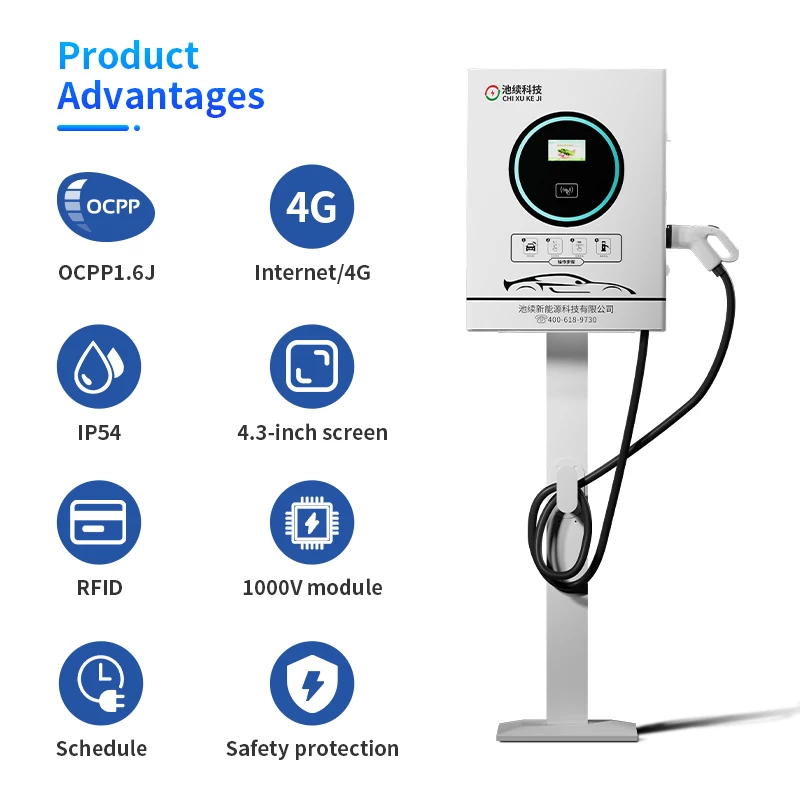

Features
20KW/30KW/40KW optional Standard 1000V module, support 800V
high voltage charging platform Single gun DC fast charge, the fastest
charge in an hour 40 degrees Make an appointment to charge and enjoy cheap valley electricity Commercial operation platform Standard AC contactor function, energy saving

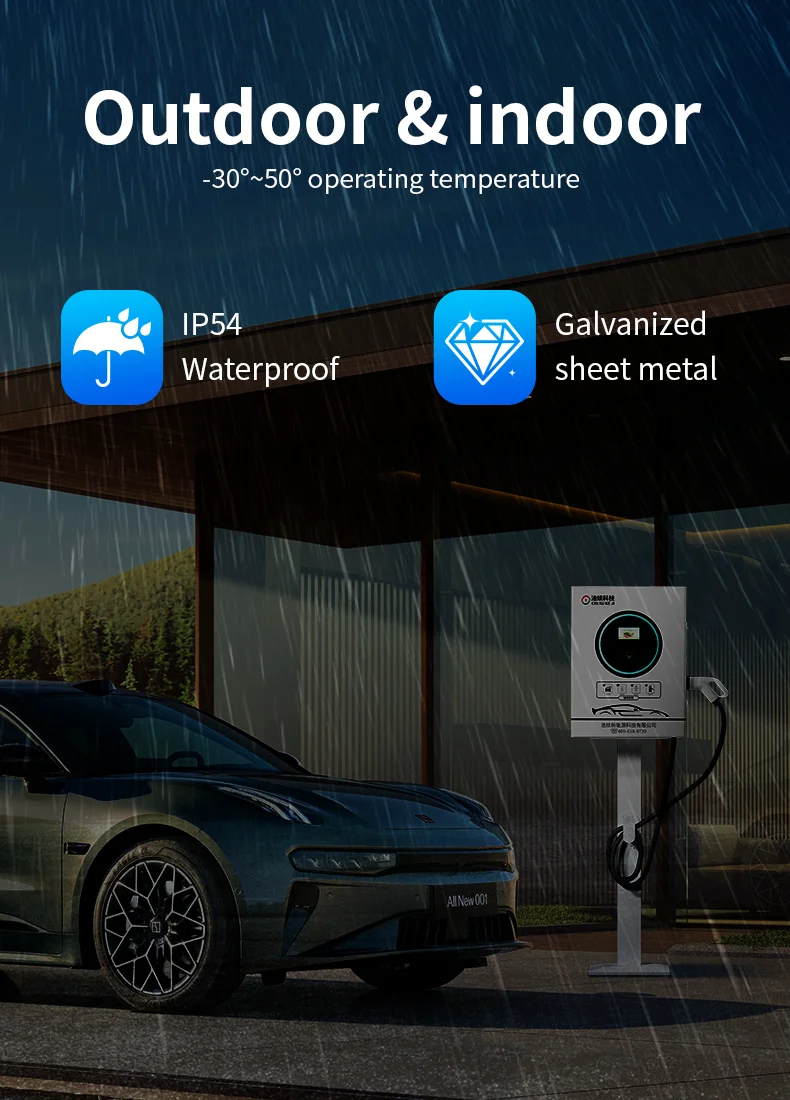

LCD capacitive touch screen Galvanized sheet metal process IP54 protection
rated power
20KW
30KW
40KW

Input line voltage
380VAC士15%



Input voltage type
three phase current



Ac network cheek rate
50Hz士10%Hz



Output voltage
DC200-1000V



Output current
63A
100A
125A

Output voltage error
≤0.5％



Output current error
output current
≥30A时:≤±1％
output current
＜30A 时:≤±0.3A



Voltage regulation accuracy
≤0.5%



Steady flow accuracy
≤0.5%



Ripple coefficient
≤0.5%



Average efficiency
≥94%



Power factor
≥0.99



Leakage current
≤10mA



Power frequency withstand voltage
2500VAC1 minNo insulation breakdown and flashover



Insulation resistance
≥20MΩ



noise
≤60dB



Isoslow protection
IP54



Cooling mode
air patenting



Safety function
Short circuit protection, grounding detection, lightning protection, over voltage protection, under voltage protection, over
current protection, over temperature protection, leakage protection, anti-overcharge protection, waterproof and dust protection,
emergency stop protection, full automatic stop 12 protection



Product size
375mm×207mm×675mm
517mm×207mm×675mm

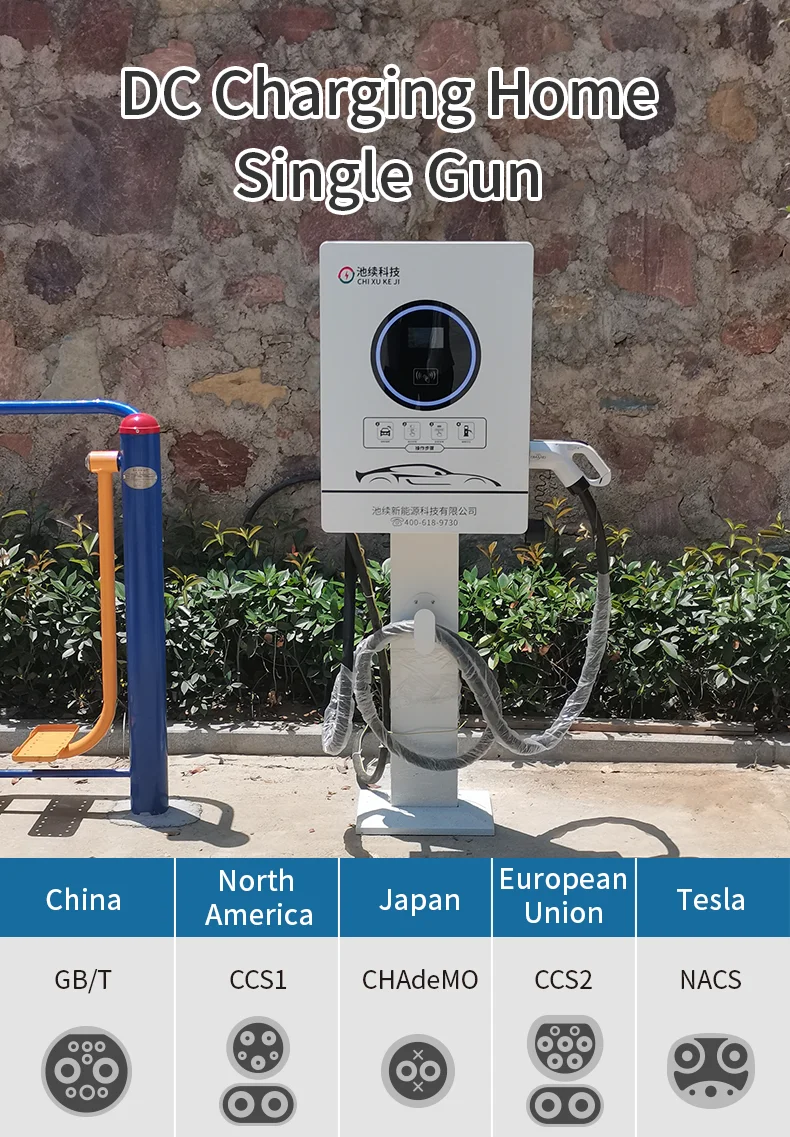

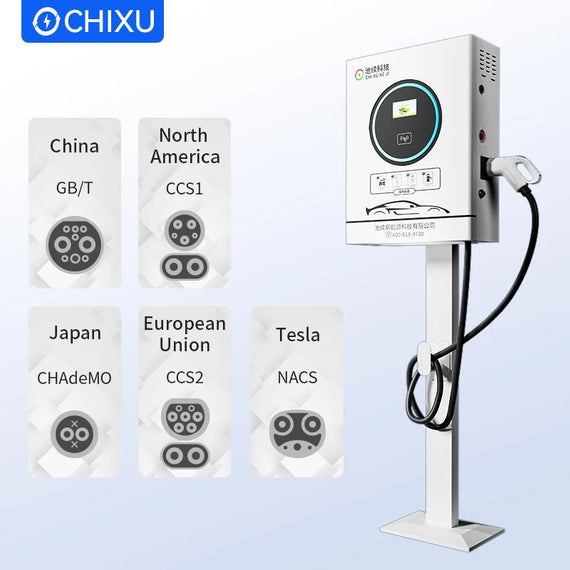

Interface Standard
GB/T
CCS1
CHAdeMO
CCS2
Charging Protocol
GB/T 20930 2015
IOS15118、SAE2847
CHAdeMO
IOS15118、DIN70121
Input Voltage per Interface
12V



Company Profile
DC fast charging pile TOP 1 brand （Brand cumulative sales：20,000,000+pieces） Ten Years Deeply cultivate the new energy industry Two National High-tech Enterprise 30,000,000+ Cumulative service customers *Data is taken from Chixu New Energy Group's online comprehensive management platform
FAQ 1. Which brands of electric vehicles are compatible with your charging station? Which rechargeable gun heads are supported?
Our charging stations are compatible with mainstream electric vehicle charging interfaces. Dc charging pile supports CHAdemo, CCS1, CCS2, GB/T, Tsla; Ac charging piles support Type 1, Type 2, GB/T, and Tsla.
2. Is your charging station easy to install? What kind of support is provided during installation and use?
Our charging stations are modular in design for quick installation. Charging stations offer voice, text and video instructions that anyone can easily use. We also provide comprehensive installation and use training.

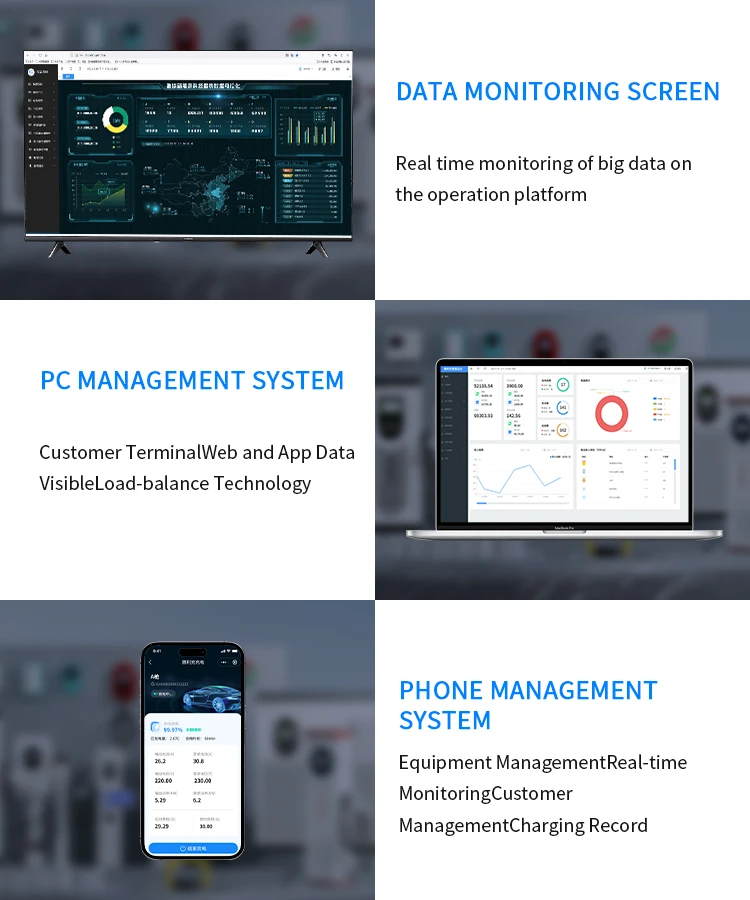

3. Does your charging station support remote monitoring and management? Can charging stations be managed intelligently and centrally?
Through OCPP1.6 and software support, our charging station supports remote monitoring of equipment status, network communication quality, power consumption data, etc., and can realize remote parameter adjustment, software update, etc., so as to realize intelligent centralized management of charging station.
4. How about the quality of your charging piles? Is it easy to maintain?
Our charging piles use high-quality materials and undergo a rigorous design, testing and verification process to ensure high reliability. Charging pile adopts modular design, in case of failure, technicians can quickly locate the specific module and directly replace the damaged module, which greatly reduces the maintenance time. In addition, our charging pile is equipped with an intelligent monitoring system, which can monitor the operating status of the equipment in real time, warn potential faults in advance, and facilitate operation and maintenance personnel to deal with it in time.
5. Is your after-sales service system perfect? Can you provide timely technical support?
1 commercial, 3 technical engineers, 6 after-sales customer service to establish a dedicated wechat service group, and establish a comprehensive after-sales technical support and spare parts supply system to ensure timely and efficient delivery.
6. Are you a manufacturer or trader of charging piles?
Chixu New energy is the source of charging pile manufacturers, 10 years focus on charging pile research and development, production, operation and after-sales, our goal is to provide customers with personalized, professional, systematic new energy vehicle charging solutions.
